Calypso Marine Instruments Ultrasonic Solar Powered Anemometer

ULTRASONIC Wind Instrument and Data Logger. A wireless (BLE) and self-powered (solar) IPX8 pocket-sized ultrasonic anemometer, easy to install, simple to use and compatible with iOs and Android.

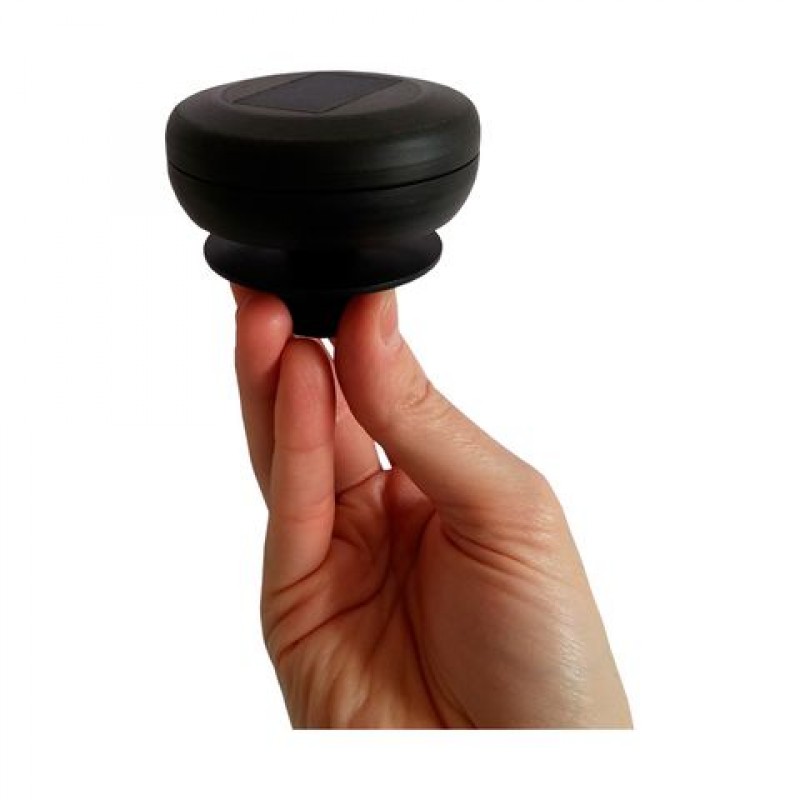

Bluetooth, solar powered and IPX8 pocket-sized ultrasonic anemometer
This self powered bluetooth 4.1 ultrasonic windmeter stays on for 29 days and 1 year without sun.

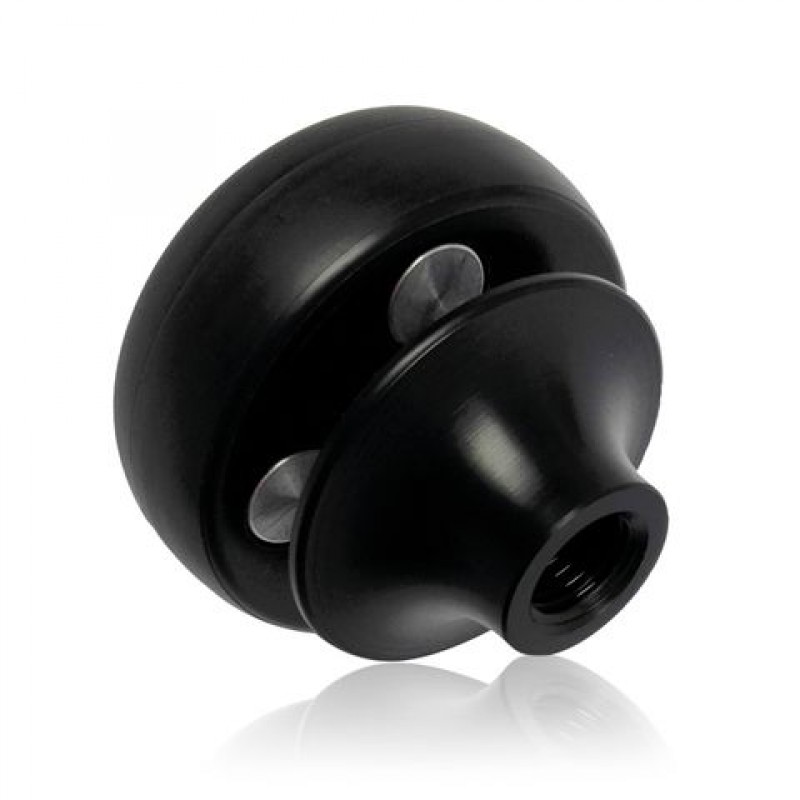

Built with ultrasonic sensors, it will provides you one of the greatest accuracy we have ever made in an anemometer. Allowing a continuos measurement of wind speed and direction.

Technical specifications

• Ultrasonic Portable model incorporates the following technical specifications: Either, dimensions and weight, make the Ultrasonic Portable a compact and easy to use product. The Ultrasonic Portable incorporates BLE technology (Bluetooth Low Energy). BLE is the first open wireless communication technology, offering communication between mobile devices or computers and other smaller devices such us our new wind meter. Compared to Classic Bluetooth, BLE is intended to provide considerably reduced power consumption and cost while maintaining a similar communication range.

Version

• The BLE version is 4.1. It incorporates important developments for the user by facilitating the reconnection between their devices once they come out and re-enter the range of action.

Compatible devices

• You can use our product with the following devices: · Compatible Bluetooth 4.0 Android devices, Android 4.3 or 4.4 · iPhone 4S or beyond · iPad 3rd generation or beyond · Run the Sailing Anemotracker App to check compatibility and make sure your device is compatible.

Range

• The coverage range is around 50 meters when it is an open space.

Solar panel/Internal baterry

• The design has a solar panel in the upper part. This solar panel feeds a battery located in the interior of the product.- Thanks to the hermetic locking it is isolated from any type of external agent. The useful life of the battery is 2100 charge/dischage cycles. Battery life it should not be a concern. It has an autonomy with no sunlight of 1 year in sleep mode and ~30 days while measuring. Besides, ULTRASONIC PORTABLE mounts a solar battery that should maintain the internal battery loaded, minimizing charge/discharge cycles.
