Selden E40i Electric Winch - Twin Winch System - Complete Kit

The Selden E40i electric 3-speed winch with stainless steel drum is supplied here as a complete electric winch system, including the required power supply and control components for installation.

• 2 x Selden E40i electric winch
• 2 x Selden Control Pack Basic
• 1 x Selden PSU Start Pack

Important: Only one PSU is required per boat, even when installing multiple winches.

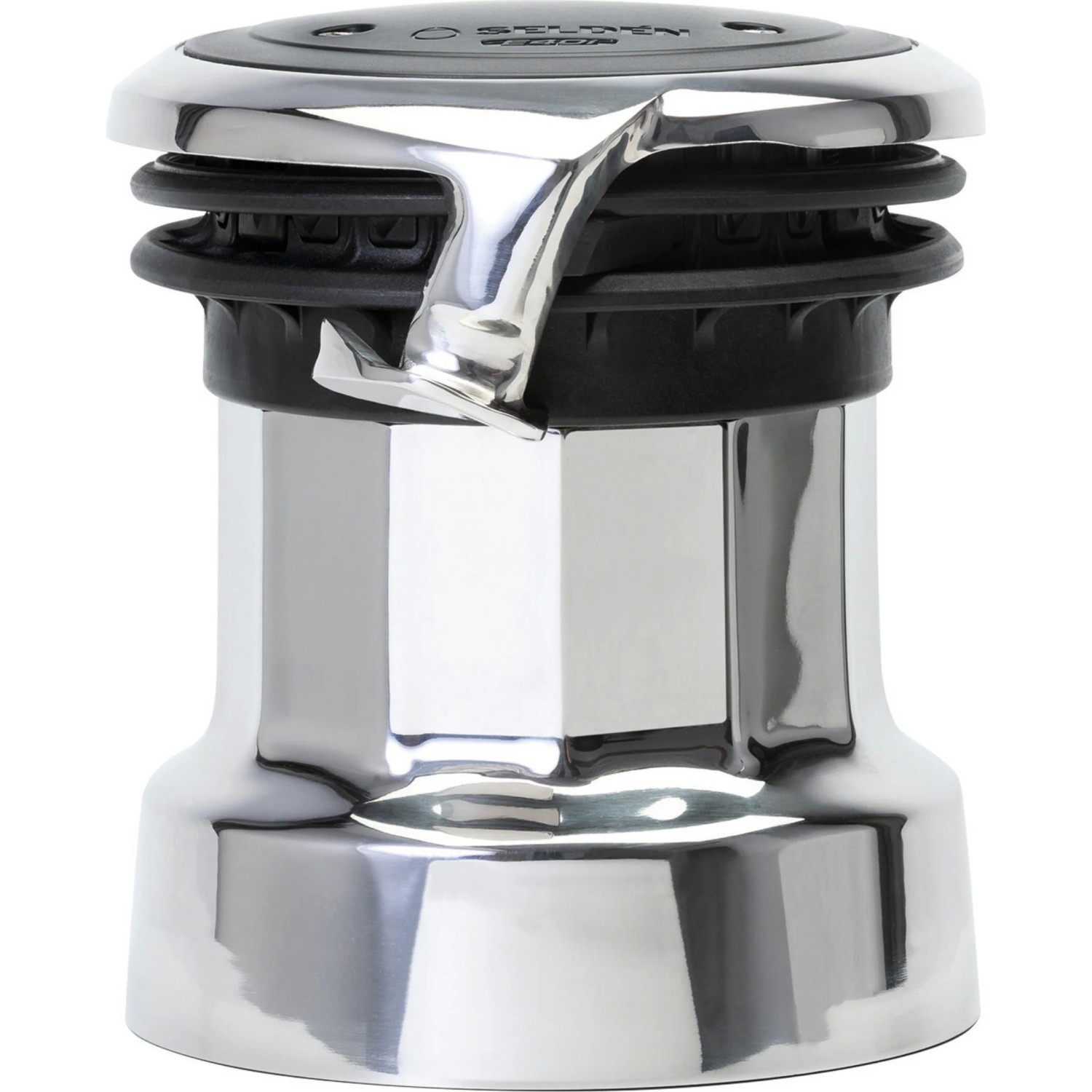

Designed with the motor built directly into the drum, the E40i removes the need for an external motor or gearbox and creates a clean installation with minimal space required below deck. This integrated design is ideal for coachroof installations where space and headroom are limited.

The 3-speed operation provides an excellent balance of speed and control, allowing for fast line retrieval combined with precise trimming under load. The self tailing function ensures secure rope handling, making this winch ideal for halyards, reef lines, outhauls and other control lines.

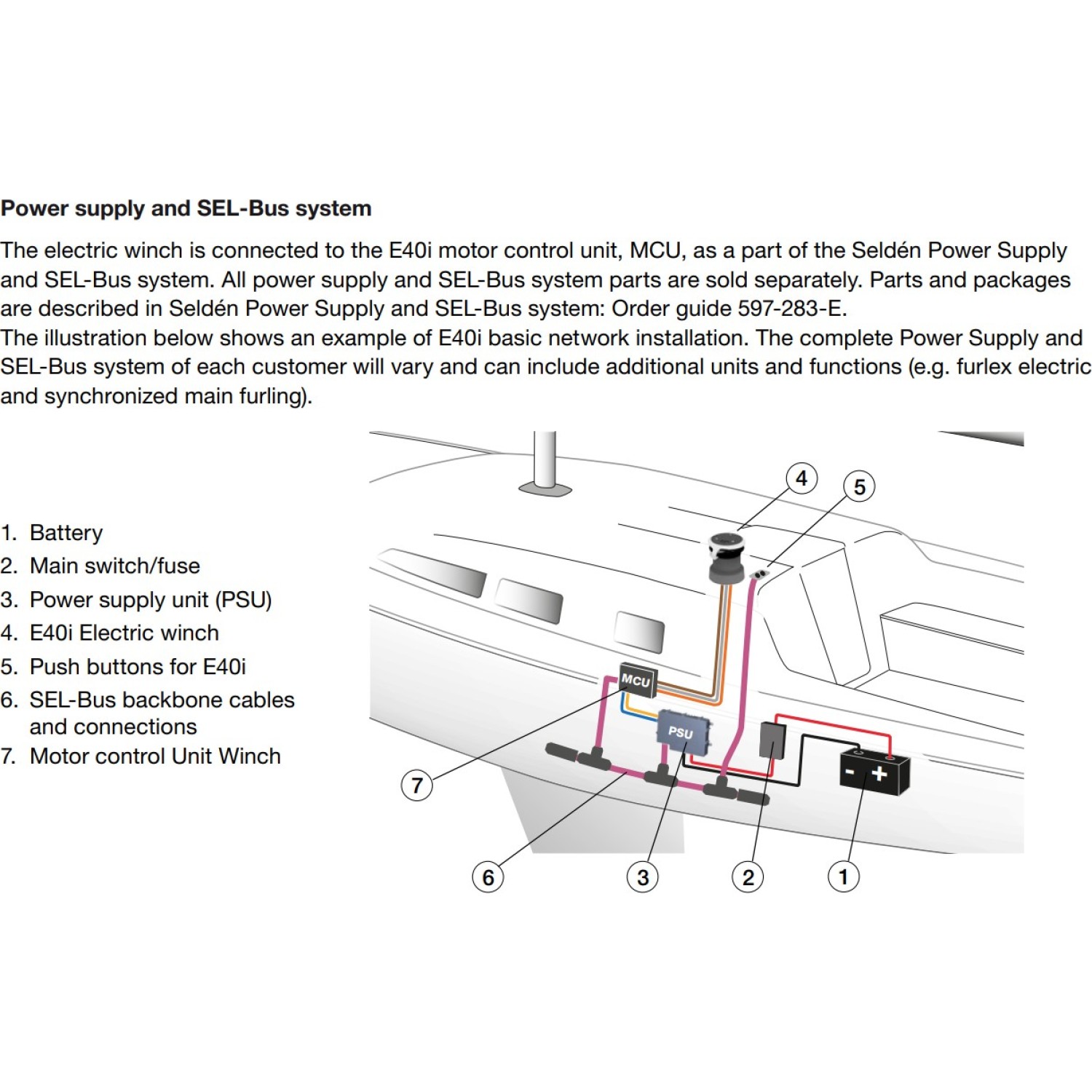

This system is powered by Selden SEL Bus technology, using a dedicated PSU to convert your boat 12V or 24V supply into an efficient 42V system. The included control pack provides smooth and reliable operation via integrated push button controls.

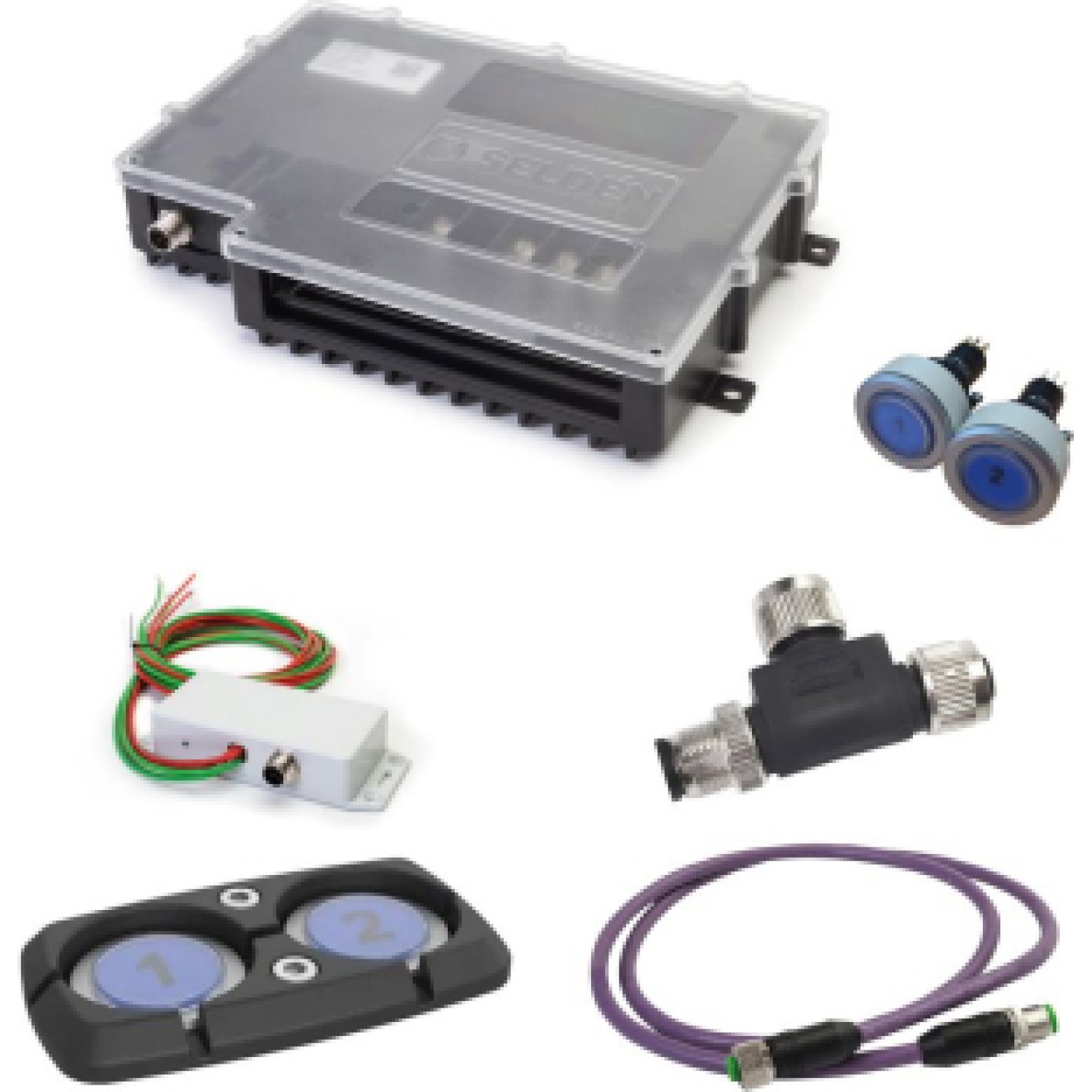

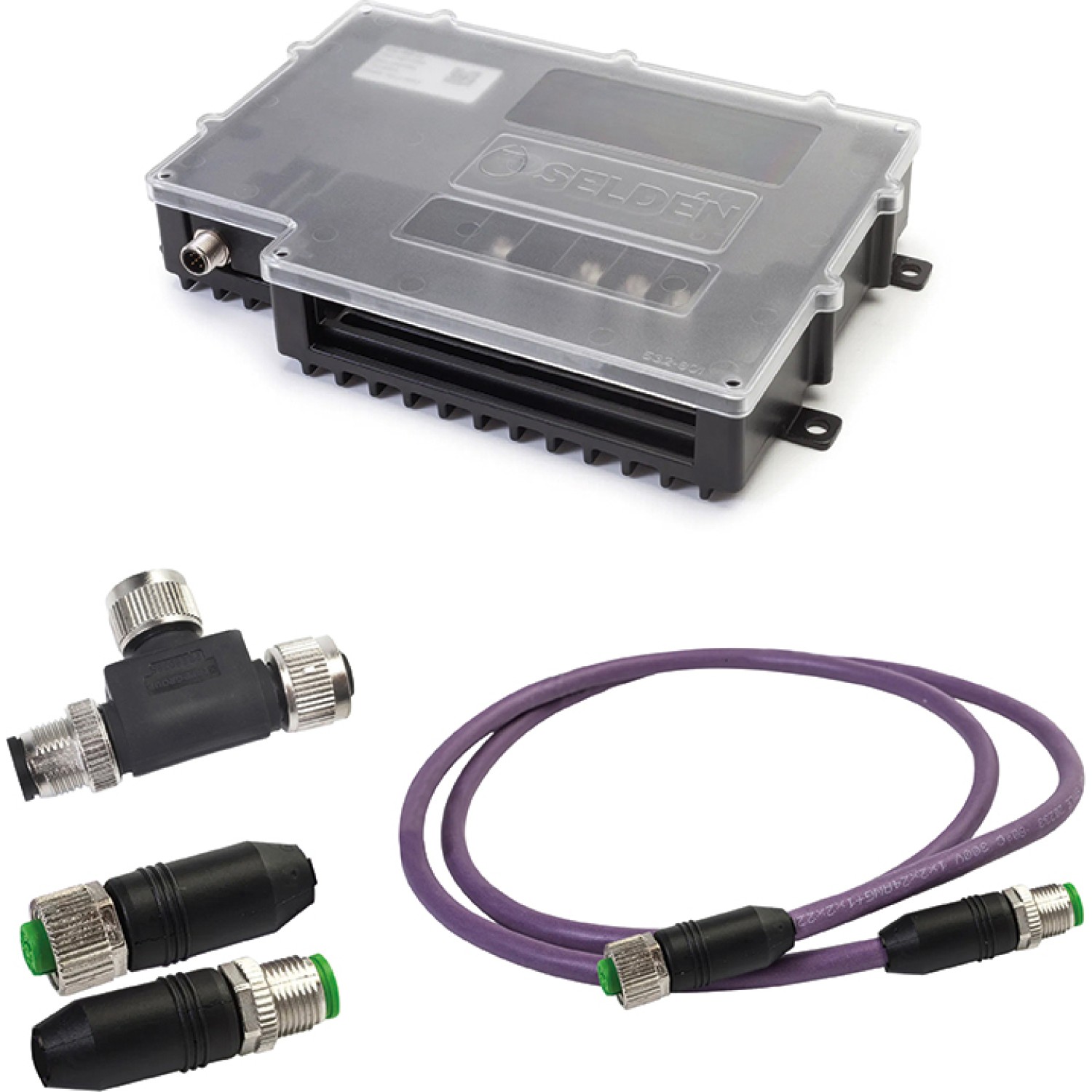

2 x Control Pack Contents:

• 1 x MCU Motor Control Unit Basic (Ref: 532-815-40)
• 1 x Push button assembly for winch (Ref: 540-457-01)
• 1 x SEL Bus push button converter (Ref: 532-827-01)
• 1 x Button protection panel (Ref: 540-482)
• 2 x SEL Bus T connectors Female Female Male (Ref: 532-839)
• 1 x SEL Bus cable Female Male 1 m (Ref: 531-102)
• 1 x SEL Bus cable Female Male 2 m (Ref: 531-103)

PSU Start Pack Contents:

• 1 x Power Supply Unit 12V or 24V to 42V conversion
• 1 x SEL Bus cable Female Female 7 m (Ref: 531-101)
• 1 x SEL Bus cable Female Female 0.5 m (Ref: 531-100)
• 2 x SEL Bus T connectors Female Female Male (Ref: 532-839)
• Fuse and protection components
• Installation and connection hardware

Key Features:

• Electric 3-speed winch with fully integrated motor
• Complete system ready for installation
• Polished stainless steel drum for durability and corrosion resistance
• No external motor or gearbox required
• Minimal installation with clean below deck layout
• Self tailing design for secure rope handling
• Ideal for halyards, reefing lines and control systems
• Reduces physical effort and improves onboard safety

The integrated motor and SEL Bus system make this an excellent upgrade for sailors looking for a powerful, efficient and easy to install electric winch setup.

Installation note: A suitable power cable from your boat battery to the PSU is required and is not included, as cable length and specification will vary depending on installation.

Specifications:

Model: E40i Electric Winch
Drum: Stainless Steel
Number of Speeds: 3
Electric Cut-Off Load: 6.00 kN
Safe Working Load: 1120 kg
Line Diameter: 8 – 14 mm
Base Diameter: 167 mm
Maximum Line Speed: 17 m/min
System Voltage: 42V via included PSU
