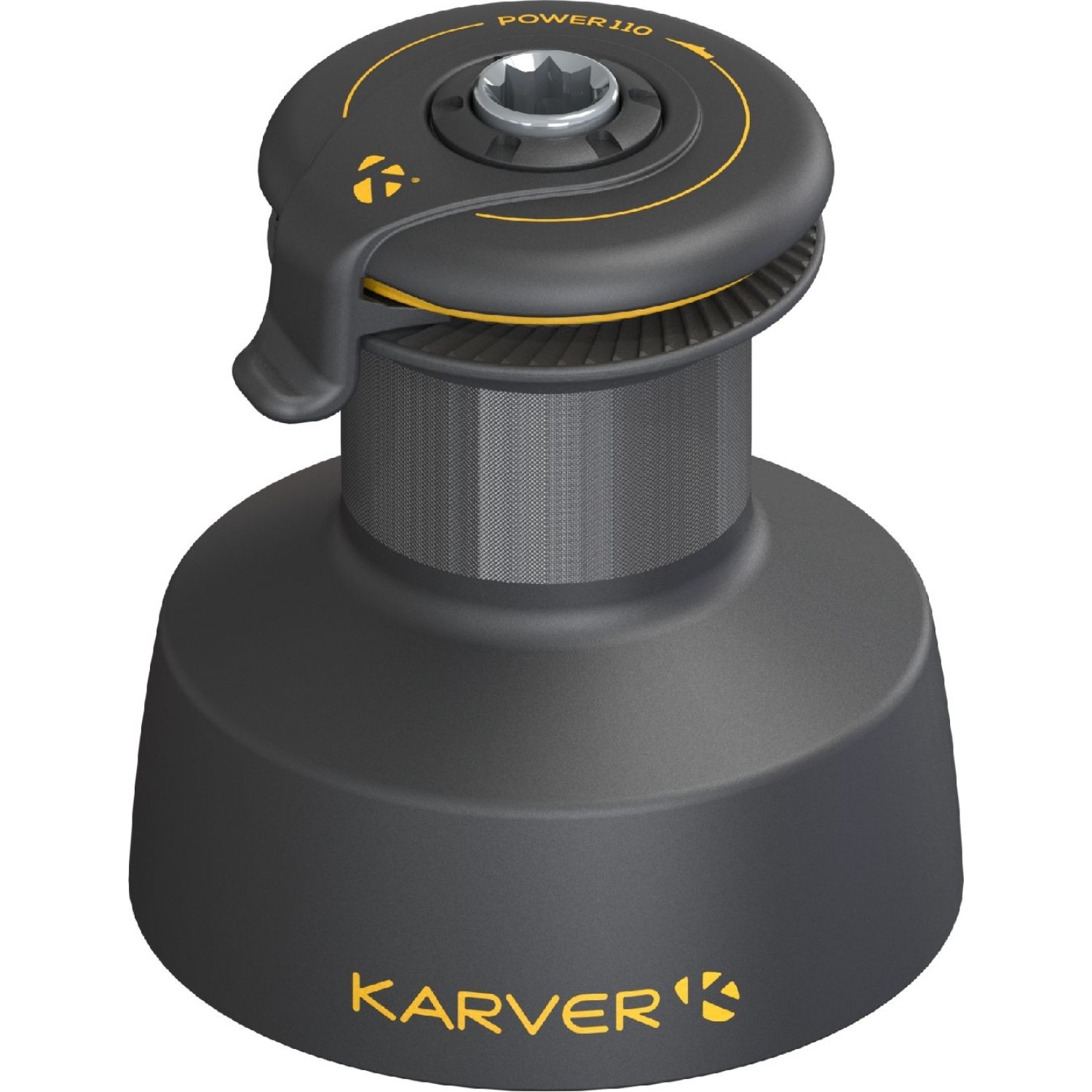

Karver KPW110 Power Winch - 4 Speed Winch

The Karver KPW110 4-speed winch is a high-power sailing winch designed to deliver maximum load handling with minimal effort. Featuring an advanced 4-speed automatic system, it offers the functionality of a traditional 2-speed winch with two additional ultra-powerful gears, making it one of the most powerful manual winches available.

Despite having the same base footprint as a standard size 40 winch, the KPW110 delivers up to 3 times more power. This significantly reduces the physical effort required when trimming sails or handling high loads, making sailing more accessible, efficient and less tiring for all crew members.

The winch automatically changes gear by reversing the direction of rotation and returns to first gear when the load is released, ensuring smooth and intuitive operation. Its exceptional power makes it a genuine alternative to electric winches, without the complexity, cost or power requirements.

Key Features:

• High-power 4-speed automatic winch system
• Up to 3x more powerful than comparable winches
• Same footprint as a standard size 40 winch
• Automatic gear changes via rotation direction
• Returns to first gear when load is released
• Self-tailing design for secure rope handling
• Reduces physical effort and crew fatigue
• Alternative to electric winches without added complexity

The KPW range is designed for sailors who need maximum power for demanding applications such as furlers, daggerboards, foils and high-load sail handling. Increased power allows for the use of shorter winch handles and provides greater control in challenging conditions.

Constructed from hard anodised aluminium, the KPW110 is built for durability in harsh marine environments. Corrosion-resistant materials and a robust design ensure long-term reliability with minimal maintenance.

Specifications:

Model: KPW110
Reference: PF1205833
Weight: 5.2 kg
Recommended Boat Size: 10 – 80 ft
Number of Speeds: 4
Maximum Power: 112.9 kg
Working Load: 1.00 T
Breaking Load: 2.00 T
Line Diameter: 8 – 12 mm
Drum Diameter: 84 mm
Base Diameter: 171 mm
Height: 190.5 mm
Line per Turn: 14 cm (max)
Power Ratios: 11.6 / 40.0 / 112.9 / 32.7
Speed Ratios: 1.92 / 6.61 / 18.67 / 5.41
Fixing: 6 x M8
Drum Material: Aluminium (hard anodised)
Warranty: 5 years
