Karver KCW45 Compact Winch - 2-Speed Winch - Compact 45 - Stainles1

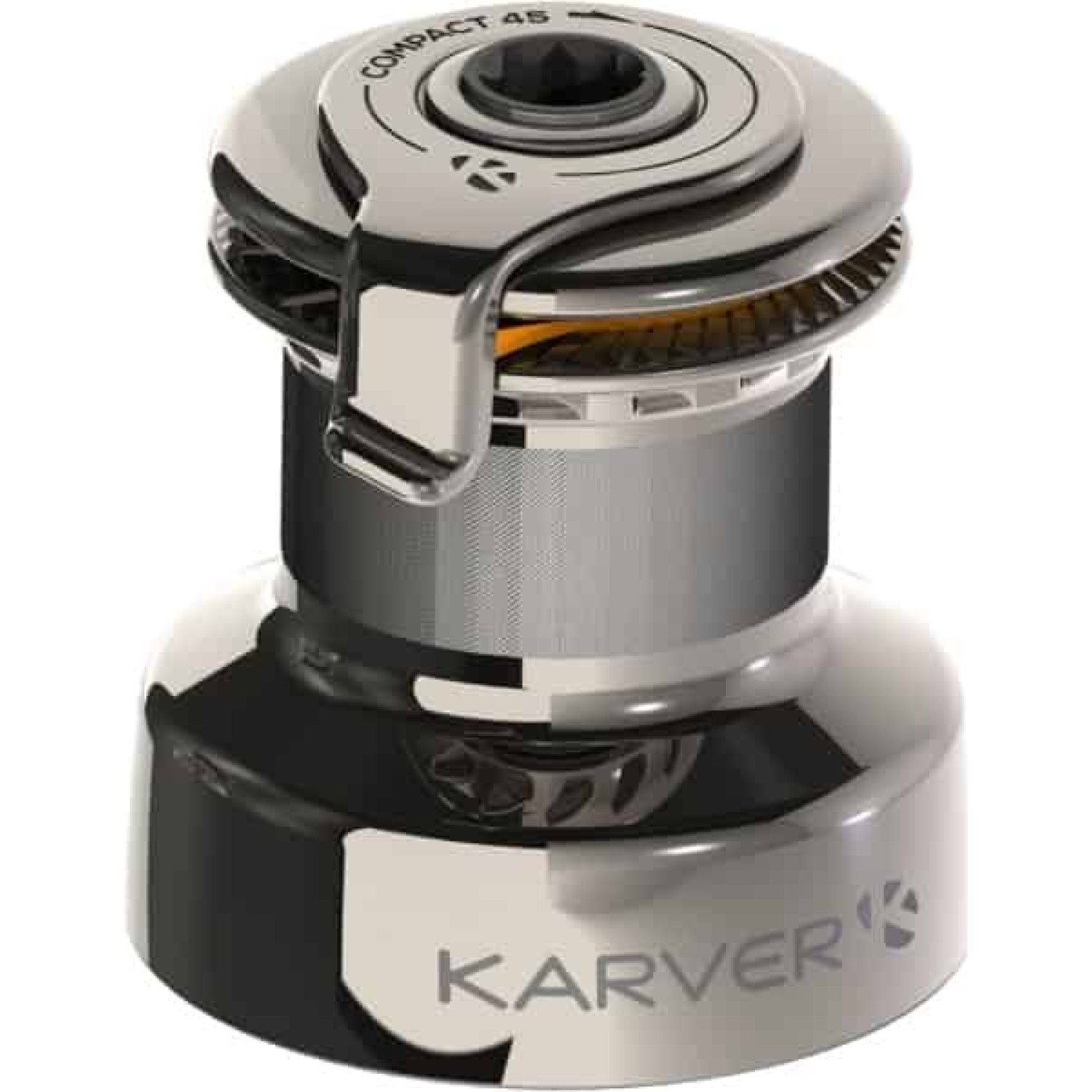

The Karver KCW45 2-speed winch with stainless steel drum combines ultra-compact performance with a premium, traditional finish. Featuring a polished 316L stainless steel drum, this version delivers the same innovative functionality as the standard model with enhanced durability and a classic look on deck.

Designed for yachts up to 40 feet, the KCW45 offers a unique combination of speed and power. Its fast first speed allows rapid line retrieval, while the powerful second speed provides the torque needed for high-load trimming, making sail handling smoother and more efficient.

Despite its compact size, the KCW45 delivers the power of a size 46 winch while fitting into a much smaller footprint. This makes it an ideal upgrade for boats looking to reduce weight and save space without sacrificing performance.

Key Features:

• Ultra-compact 2-speed winch design
• Polished 316L stainless steel drum for durability and corrosion resistance
• Fast first speed for rapid line retrieval
• Powerful second speed for high-load trimming
• Power equivalent to a size 46 winch in a compact footprint
• Self-tailing design for secure rope handling
• Flexible installation with no fixed orientation constraints
• Lightweight construction with reduced material usage

The KCW45 is ideal for a wide range of sailing applications including tacks, gybes and sail hoists. Its compact size and reduced weight make it particularly well suited to modern yachts where space and efficiency are key considerations.

The 316L stainless steel drum provides excellent resistance to corrosion and wear, making it ideal for long-term use in harsh marine environments. Combined with Karver’s precision engineering, this winch offers both performance and durability.

The KCW45 has been recognised for its innovative design, winning the prestigious DAME Award 2019 in the Hardware, Rigging & Sails category.

Specifications:

Model: KCW45 Stainless Steel Drum
Reference: PF1205836 [INOX]
Weight: 7.9 kg
Recommended Boat Size: 10 – 110 ft
Number of Speeds: 2
Maximum Power: 45 kg
Working Load: 0.85 T
Breaking Load: 1.70 T
Line Diameter: 8 – 11 mm
Drum Diameter: 84 mm
Base Diameter: 130 mm
Height: 142 mm
Line per Turn: 26.4 cm (max)
Power Ratios: 6.05 / 45.0
Speed Ratios: 1.00 / 7.44
Fixing: 6 x M6
Drum Material: 316L Stainless Steel
Warranty: 5 years
