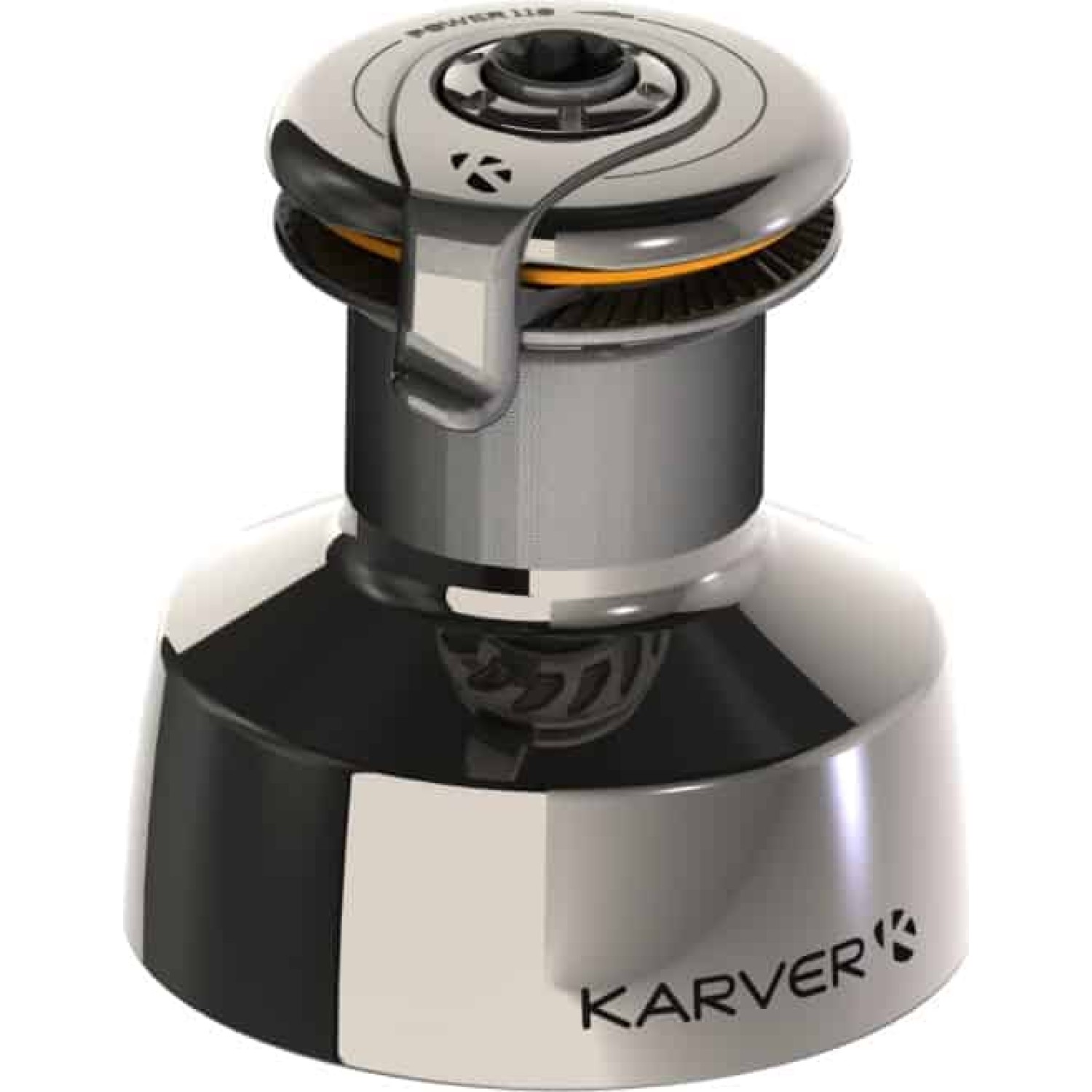

Karver KPW110 Power Winch - 4 Speed Winch - Stainless

The Karver KPW110 4-speed winch with stainless steel drum combines exceptional power with a premium, traditional finish. Featuring a polished 316L stainless steel drum, this version delivers the same high-load performance as the standard model while offering enhanced durability and a classic look on deck.

Designed for sailors who want to reduce effort under load, the KPW110 delivers up to 3 times more power than a comparable winch. Built on a compact size 40 footprint, it provides the power of a much larger winch while maintaining a lightweight and space-efficient design.

At the core of the system is Karver’s 4-speed automatic gearbox, offering two standard speeds alongside two ultra-powerful gears. Gear changes are achieved simply by reversing the direction of rotation, with the winch automatically returning to first gear when the load is released for smooth and intuitive operation.

This increased power significantly reduces physical effort, making sail handling easier and less tiring. The KPW110 is also a genuine alternative to electric winches, delivering high performance without the complexity, weight or power requirements.

Key Features:

• High-power 4-speed automatic winch system
• Polished 316L stainless steel drum for durability and corrosion resistance
• Up to 3x more powerful than equivalent winches
• Compact size 40 footprint with increased output
• Automatic gear changes via rotation direction
• Returns to first gear when load is released
• Self-tailing design for secure rope handling
• Reduces effort and crew fatigue

The KPW range is ideal for demanding applications such as furlers, daggerboards, foils and heavily loaded sail systems. Increased power also allows the use of shorter winch handles and improves control in tight cockpit layouts.

The 316L stainless steel drum provides excellent resistance to corrosion and wear, making it well suited to long-term use in harsh marine environments. Combined with Karver’s precision engineering, this winch delivers both performance and durability.

Specifications:

Model: KPW110 Stainless Steel Drum
Reference: PF1205833 [INOX]
Weight: 8.02 kg
Recommended Boat Size: 10 – 110 ft
Number of Speeds: 4
Maximum Power: 112.9 kg
Working Load: 1.00 T
Breaking Load: 2.00 T
Line Diameter: 8 – 12 mm
Drum Diameter: 84 mm
Base Diameter: 171 mm
Height: 190.5 mm
Line per Turn: 14 cm (max)
Power Ratios: 11.6 / 40.0 / 112.9 / 32.7
Speed Ratios: 1.92 / 6.61 / 18.67 / 5.41
Fixing: 6 x M8
Drum Material: 316L Stainless Steel
Warranty: 5 years
