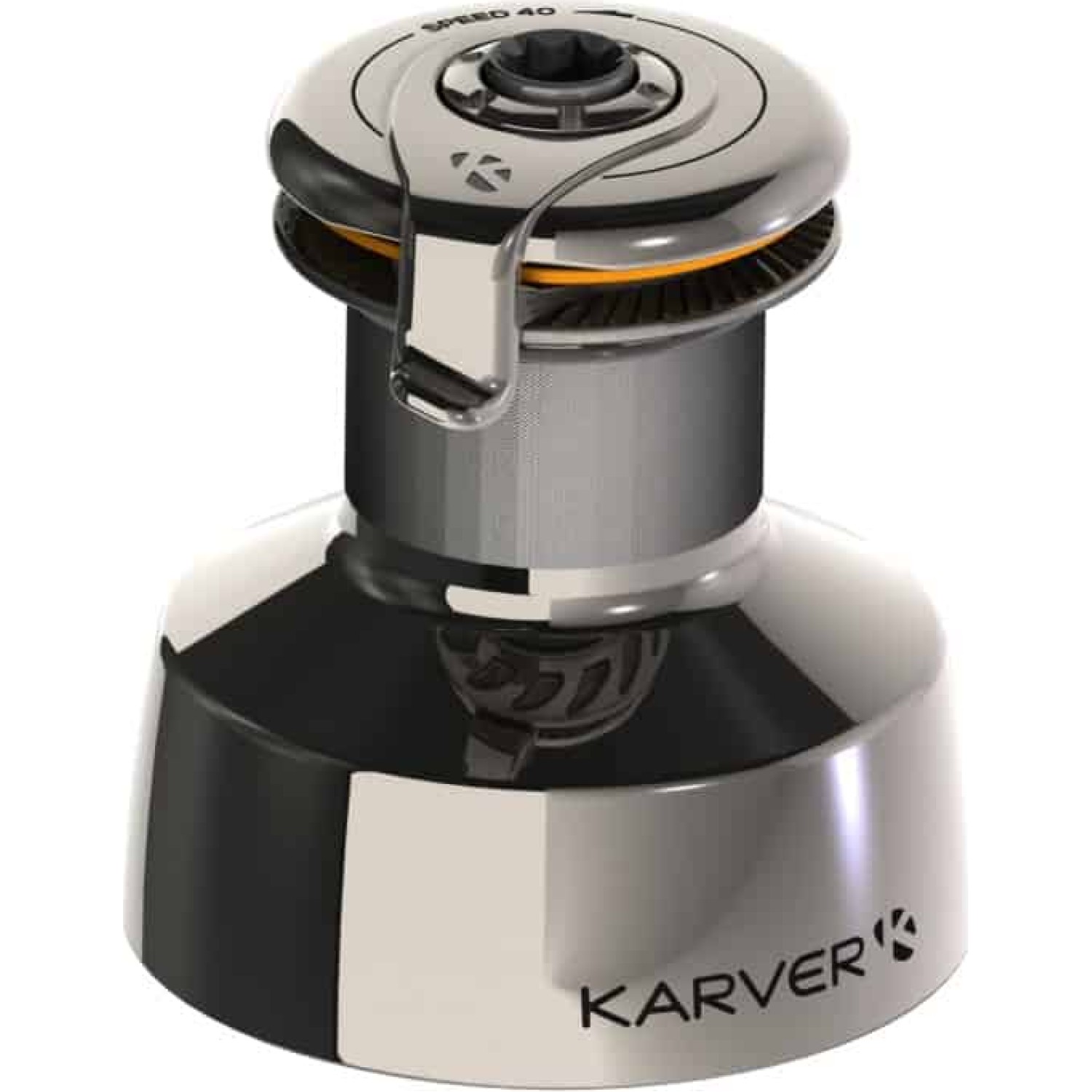

Karver KSW40 Speed Winch - 4-Speed Winch - Stainless

The Karver KSW40 4-speed winch with stainless steel drum combines high-performance sailing technology with a premium, traditional finish. Featuring a polished 316L stainless steel drum, this version delivers all the performance benefits of the KSW40 while offering enhanced durability and a classic aesthetic.

At the core of the design is Karver’s innovative 4-speed automatic system, providing the functionality of a traditional 2-speed winch with two additional ultra-fast gears. Gear changes are achieved simply by reversing the direction of rotation, with the winch automatically returning to first gear when the load is released.

The KSW40 retrieves line up to 6 times faster than a standard winch of similar size, dramatically reducing the number of handle turns required. This results in faster tacks, gybes and hoists, improved boat speed and reduced effort for the crew. The self-tailing system also removes the need to manually take up slack, keeping manoeuvres smooth, safe and efficient.

Key Features:

• 4-speed automatic winch with ultra-fast gear system
• Polished 316L stainless steel drum for durability and premium finish
• Two standard speeds plus two ultra-fast additional speeds
• Up to 6x faster line retrieval than comparable winches
• Automatic gear changes via rotation direction
• Returns to first gear when load is released
• Self-tailing design for secure rope handling
• Ideal for cruising, racing and short-handed sailing

The Karver KSW range is widely used on performance yachts, including Class 40 race boats, where fast and efficient line handling delivers a clear advantage. Faster operation reduces sail wear, maintains sail shape and helps retain speed through manoeuvres.

The 316L stainless steel drum offers excellent resistance to corrosion and wear, making it ideal for long-term use in harsh marine environments. Combined with Karver’s precision engineering, this winch delivers both performance and longevity.

Specifications:

Model: KSW40 Stainless Steel Drum
Reference: PF1205830 [INOX]
Weight: 7.9 kg
Recommended Boat Size: 10 – 110 ft
Number of Speeds: 4
Maximum Power: 40 kg
Working Load: 0.85 T
Line Diameter: 8 – 12 mm
Drum Diameter: 84 mm
Base Diameter: 171 mm
Height: 190.5 mm
Line per Turn: 70 cm (max)
Power Ratios: 2.30 / 8.00 / 11.60 / 40.00
Speed Ratios: 0.38 / 1.32 / 1.92 / 6.61
Fixing: 6 x M8
Drum Material: 316L Stainless Steel
Warranty: 5 years
