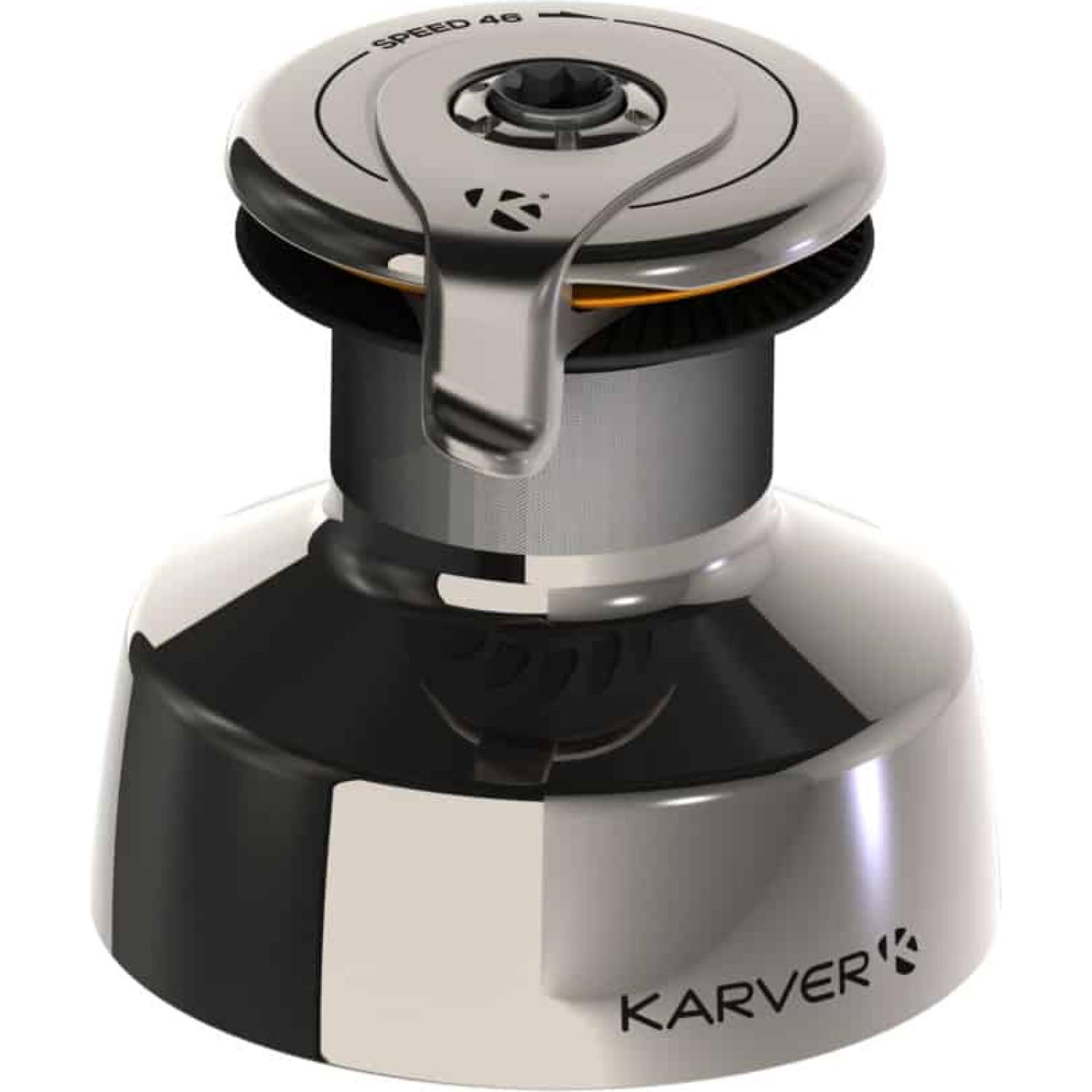

Karver KSW46 Speed Winch - 4-Speed Winch - Stainless

The Karver KSW46 4-speed winch with stainless steel drum combines advanced sailing performance with a premium, traditional finish. Featuring a polished 316L stainless steel drum, this version delivers the same high-speed efficiency as the standard model while offering enhanced durability and a classic yacht aesthetic.

At the heart of the design is Karver’s innovative 4-speed automatic system, providing two standard speeds alongside two ultra-fast gears. Gear changes are achieved simply by reversing the direction of rotation, with the winch automatically returning to first gear when the load is released for smooth, intuitive operation.

The KSW46 retrieves line up to 6 times faster than a comparable winch, significantly reducing the number of handle turns required. This allows for faster tacks, gybes and sail hoists, helping maintain boat speed while reducing effort. The self-tailing system eliminates the need to manually take up slack, making manoeuvres quicker, safer and more controlled.

Key Features:

• 4-speed automatic winch with ultra-fast gear system
• Polished 316L stainless steel drum for strength and corrosion resistance
• Two standard speeds plus two ultra-fast additional speeds
• Up to 6x faster line retrieval than equivalent winches
• Automatic gear changes via rotation direction
• Returns to first gear when load is released
• Self-tailing design for secure rope handling
• Ideal for cruising, racing and short-handed sailing

The Karver KSW range is widely used on performance yachts, including Class 40 race boats, where efficient line handling delivers a clear advantage. Faster operation reduces sail wear, maintains sail shape and helps retain speed through manoeuvres.

The 316L stainless steel drum provides excellent resistance to corrosion and wear, making it ideal for long-term use in harsh marine environments. Combined with Karver’s precision engineering, this winch offers both performance and durability.

Specifications:

Model: KSW46 Stainless Steel Drum
Reference: PF1205831 [INOX]
Weight: 13.05 kg
Recommended Boat Size: 10 – 110 ft
Number of Speeds: 4
Maximum Power: 46.6 kg
Working Load: 1.30 T
Breaking Load: 2.60 T
Line Diameter: 8 – 14 mm
Drum Diameter: 100 mm
Base Diameter: 206 mm
Height: 204.5 mm
Line per Turn: 68 cm (max)
Power Ratios: 2.30 / 9.30 / 11.70 / 46.60
Speed Ratios: 0.46 / 1.83 / 2.30 / 9.17
Fixing: 6 x M8
Drum Material: 316L Stainless Steel
Warranty: 5 years
